Intempco Capsule RTD, R06
Images are representations only.

R06 Capsule RTD

Brand: Intempco Controls, Inc
Favorite

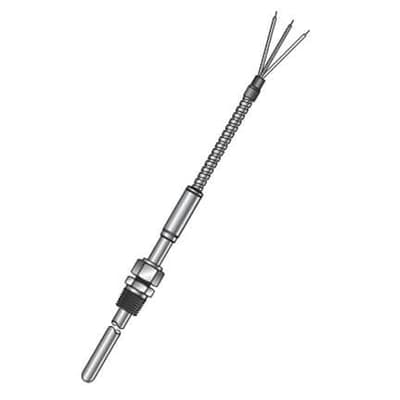

This general-purpose RTD probe is compact, low cost and ideal for OEM applications.

Lead wires transition the sheath with the use of metal transition adaptor and are at that point more durable than the model R03 probe. PVC or Teflon jacketed lead wires are available.
Features
  • General purpose RTD probe with PVC or Teflon lead wires
  • Transition adaptor between leads and sheath
  • Adjustable fitting available
  • OEM designs and pricing available

Specifications

Brand

Approvals & Certifications

  • Certificate of Compliance

Cable Material

  • PVC Insulation
  • Teflon Insulation

Diameter

  • Sheath O.D.: 1/4 to 5/8” (6.4 to 15.9 mm)
  • Tip O.D.: 1/8 to 1/4” (3.2 to 6.4 mm)

Electrical Connectors

  • 22 AWG

Materials of Construction

  • Ferrule Material: Brass
  • Ferrule Material: Stainless Steel
  • Ferrule Material: Teflon

MS (Military) Connection

  • 3/8”-24 Male MS

NPT Connection

  • 1” NPT Male
  • 1/2” NPT Male
  • 1/4” NPT Male
  • 1/8” NPT Male
  • 3/4” NPT Male
  • 3/8” NPT Male

Process Connection Material

  • Brass
  • Stainless Steel

Process Fitting Details

  • Compression Fitting

RTD Type

  • Pt100 ohm at 0° C, α = 0.00385 IEC 751
  • Pt1000 ohm at 0° C, α = 0.00385 IEC 751

SAE Connection

  • 3/8”-24 SAE Male

Sensor, Probe Connection

  • RTD Circuit Typical: 2-Wire (Single/Dual)
  • RTD Circuit Typical: 3-Wire (Single/Dual)
  • RTD Circuit Typical: 4-Wire (Single/Dual)

Sensor, Probe Diameter

  • Probe: 1/8 to 1/2” (3.17 to 12.7 mm)

Sensor, Probe Material

  • Probe: 316 Stainless Steel
  • Probe: 316L Stainless Steel
  • Probe: Inconel 600

Temperature Range

  • -200° to 600° C (-328° to 1,112° F)

Tolerance

  • Element: ± 0.04 % (± 0.1° C) at 0° C, Class AA
  • Element: ± 0.06 % (± 0.15° C) at 0° C, Class A
  • Element: ± 0.12 % (± 0.3° C) at 0° C, Class B

  • OEM Applications
